La serie DHO800 appena introdotta da Rigol , identifica il nuovo oscilloscopio digitale economico ad alte prestazioni.
Sebbene compatto nel design, ha prestazioni elevate. Presenta una velocità di acquisizione fino a 1.000.000 wfms/s (in modalità UltraAcquire), una profondità di memoria di 25 Mpt, una risoluzione a 12 bit ed un basso livello di rumore.
Questa serie è stata progettata per soddisfare il vasto mercato tradizionale degli oscilloscopi nelle varie esigenze di progettazione, debug e test.

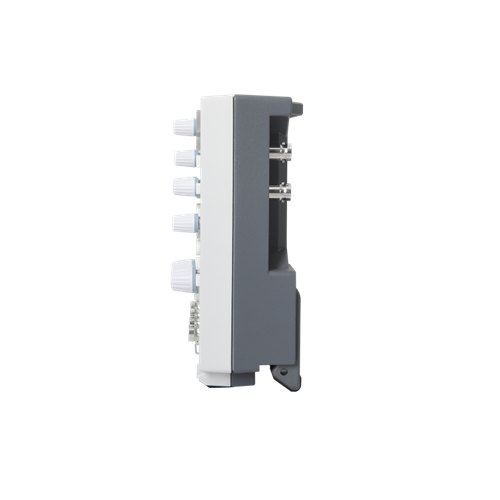

Compatto e portatile puo' essere usato sui tavoli di riparazione, in classe , sulle stazioni di collaudo ed in altri diversi scenari.
Specifiche tecniche modello :
|
Model |
DHO802 |
| Analog Bandwidth (-3 dB) | 70 MHz |
|
Rise Time (10% to 90%, typical)
|
≤5 ns |
| No. of Analog Channels | 2 + EXT |
| Sampling Mode | Real-time Sampling |
| Max. Sample Rate of Analog Channels |
Two-channel model: 1.25 GSa/s (single-channel[1]), 625 MSa/s (full-channel[3]) four-channel model: 1.25 GSa/s (single-channel[1]), 625 MSa/s (dual-channel[2]), 312.5 MSa/s (full-channel[3]) |
| Max. Memory Depth | Two-channel model: 25 Mpts (single-channel[1]), 10 Mpts (full-channel[3]) four-channel model: 25 Mpts (single-channel[1]), 10 Mpts (dual-channel[2]), 1 Mpts (full- channel[3]) |
|
Max. Waveform
Capture Rate |
30,000 wfms/s (Vector Mode) 1,000,000 wfms/s (UltraAcquire Mode) |
| Vertical Resolution | 12 bits |
| Hardware Real- time Waveform Recording and Playing |
Max 500,000 frames |
|
Peak Detection
|
Capture 1.6 ns glitches |
| LCD Size and Type | 7'' capacitive multi-touch screen |
| Display Resolution | 1024x600 |
NOTE:
[1]: Single-channel mode: If any one of the channels is enabled, it is called single-channel mode.
[2]: Dual-channel mode: For four-channel models, if any two of the channels are enabled, it is called dual-channel mode.
[3]: Full-channel mode: For two-channel models, if all of the two channels are enabled, it is called full-channel mode; for four-
channel models, if any three channels or all of the four channels are enabled, it is called full-channel mode.
Specifiche tecniche serie DHO800:
-Ultra-low noise floor, purer signal, never miss the small signals
-Up to 12 bits resolution for all the models of this series
-Max. analog bandwidth of 100 MHz, 4 analog channels, external trigger output (std.) available for the dual-channel model
-Max. real-time sample rate of 1.25 GSa/s
-Max. memory depth of 25 Mpts
-Vertical sensitivity range: 500 µV/div to 10 V/div
-Max.-capture rate of 1,000,000 wfms/s (in UltraAcquire mode)
-Digital phosphor display with real-time 256-level intensity grading
-Waveform search and navigation function allows you to debug the signal anomalies faster
-7" (1024x600) capacitive multi-touch screen
-Brand new Flex Knob brings user-friendly experience

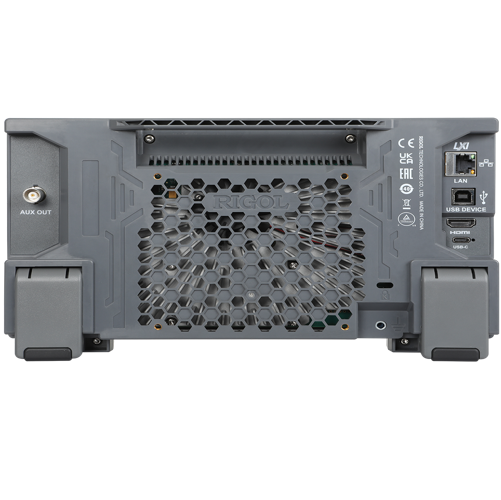

-USB Device & Host, LAN, and HDMI interfaces (std.) for all the models of this series
-Novel and delicate industrial design, easy to operate
-Unique online upgrade
Manuali:
QuickGuide serie Rigol DHO800
Datasheet serie Rigol DHO800
UserGuide serie Rigol DHO800
ProgrammingGuide serie Rigol DHO800DHO900
